Automatic Crystal Glass Trophy CO2 laser engraver machine 100w 1310
Product Features
1. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
2. Professional Strip work table, which meet the needs of diversified laser procession;
3. Water Cooling System with Alarm Protection, adopt CW-5200 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
4. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, makes high efficiency and steady.
5. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
6. Red Light Pointer realizes the exact position without laser.
Application
1. Advertising industry: Double-colored board and Label carving, Organic glass
carving and cutting
2. Carved gifts and Crafts industry: wood/Granite, Bamboo, Ivory, Bone, Leather
3. Leather clothing industry: Complex characters and pattern carving,Synthetic Leather,
Man-made Leather, Cloth.
4. Arcitectural model industry: ABS board cutting, Model carving
5. Packing and Printing Industry: Rubber,Plastic board, Double-layered board, Model
cutting board.
Applied Material:
Wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,
glass and other nonmetal materials
Specifications
| Item: | LX-1390 |
| Laser Type: | CO2 Laser Tube |
| Laser Wavelength: | 10.64um |
| Laser Power: | 60w/80W/100W/130W/180W |
| Working Area: | 600*900mm/1300*900mm/1600*1000MM |
| Engraving Speed: | 0-30000mm/min |
| Cutting Speed: | 0-3600 mm/min |
| Cutting Thickness | 0-10mm (Varies to different materials) |
| Machine Power: | 300-450W |
| Location Type: | Red Pointer positioning |
| Location Accuracy | ±0.1mm |
| Resolution: | 1000dpi |
| Port: | USB 2.0 |
| Working Table: | Honeycomb table |
| Up-down height: | 0-300mm |
| Mini Text Height: | English Letter: 1mm Chinese:2mm |
| Support Software: | Windseal XP / CorelDraw |
| Working Voltage: | AC220V/50HZ AC110V/50HZ |
| Working Environment: | Temperature:0-45℃ Humidity:5%-95% |
| Driver Way: | Digital Subdividing Step Driver |
| Laser Device Cooling Type | Circulating Water Cooling |
| Option Item: | Motorized up-down table, Rotary Fixture Water-circulation Non-normal Protection Switch, CW-3000 Water Chiller |
| Rotary System(Optional) | φ10-150×300mm |

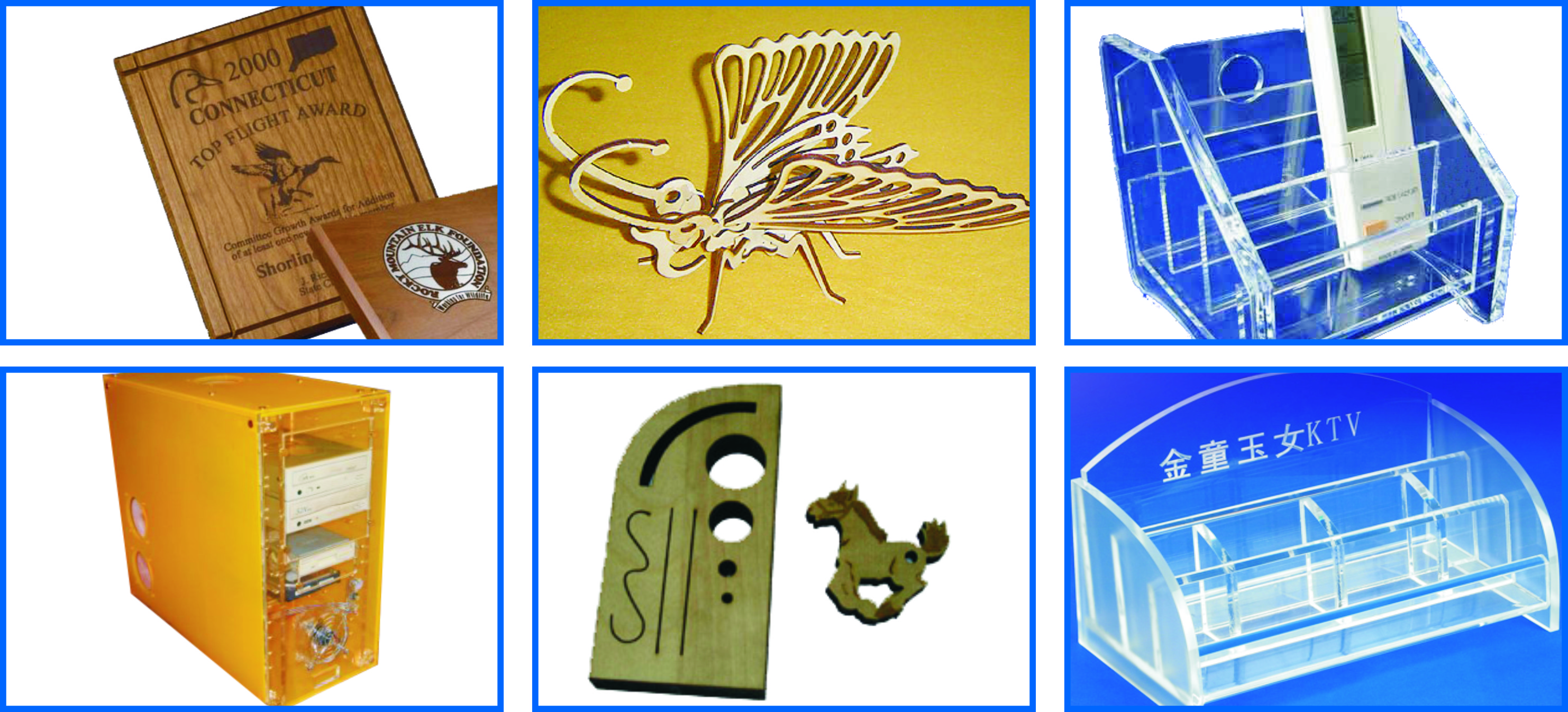

Sample show
Packaging & Delivery
1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
