MDF , Wood CO2 Laser Cutting Machine LCD Touch Screen , USB Port , DSP Offline Control
Features
1. Taiwan HIWIN square linear guide rail installed on X&Y axis, make sure the works stably
and precisely.
2. The professional manufacturers adopts square tube framework in China, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the machine from
quiveringresonance and distortion during long term work.
3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 6000 hours.
4.Red dot position system is added in standard configuration, contributing to simple and precise working position.
Application
1. Artcrafts: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
2. Advertisement: double color board,acrylic engraving and cutting,label engraving,crystal etc.
3. Model industry: sand table construction model,plane model etc.
4. Packing:rubber engraving,plastic,doubling plate,die board cutting etc.
5. Leather and cloth process:compound leather,man-made leather,fabric,fur ,toy etc.
6. Other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.
Machine specification
| Model | LX-1060 | LX-6040 | LX-1390 | LX-1610/1612/1325 |
| Laser | CO2 glass sealed laser tube or metallic sealed laser tube |
| Laser power | 40W/60W/80W | 60W/80W/100W/120W/150W |
| Work platform size | 1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm |
| Engraving speed | ≤1000mm/s |
| Cutting speed | ≤500mm/s |
| Worktable | honey-comb or aluminum knife optional |
| Precision of positioning | ≤±0.025mm |
| Working temperature | 5-30 °C degree |
| Control System | RDCAM DSP Control system |
SoftWare
| Laser Cut software
PLT,BMP,DXF,DST,TIF format supported
CorelDraw, AutoCAD Software Compatible |
| Transmission | Belt transmission (Standard)
Or ball screw transmission optional for extra cost |
| Linear Rail | Taiwan HIWIN linear rail |
| Motor type: | Japan Stepper motor |
| DPI | 2500 |
| Recommended spare parts | Laser tube, Focal lens, Reflection Mirror |
| Power supply | 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional |
| Machine dimension (mm) | 1600*1100*1300 | 1600*800*1050 | 1950*1470*1300 | 2280*1730*1180 |
| G.W | 230KG | 260KG | 470KG | 550KGS |

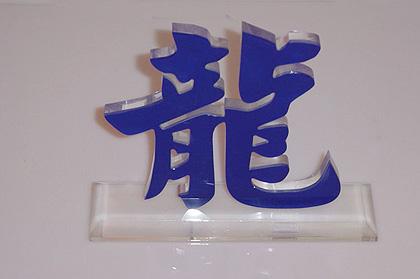

Sample show
Packaging & Delivery
1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
