100w 130w CO2 Laser Engraving Machine With Max Engraving Speed 1200mm/s
Product Features
1. Materials can extend through the front and rear doors to allow for a larger work product.
2. Following LED Work light to help see products during laser processing.
3. Red-DOT pointer to help you see the expected laser beam position.
4. AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5. Parts tray for removing small parts or scrap from under the workbed.
6. Fully enclosed laser case yields a class I (user friendly) laser product.
Application
Leather, furs, textile fabric, mesh cloth, knitted cloth ,non-woven, non-woven fabrics, canvas ,medical supplies, denim fabric, acrylic Organic glass ,silica gel, mouse pad, guide plate, a backlight board, plywood ,SMT cover board ,pet, PC, PP ABS ,wood ,Oka skin, handbags ,Shoes ,toy industry, garment factory, embroidery factory ,all kinds of touch screen ,with insulating materials such as conductive film, electronic industry.
Applied Material:
Wood products, paper ,leather ,cloth, organic glass ,epoxy resin, acrylic ,wool ,plastic, rubber ,ceramic ,crystal, jade, Bamboo products and other non- metallic materials
Specifications
| Item: | LX-1390 |
| Laser Type: | CO2 Laser Tube |
| Laser Wavelength: | 10.64um |
| Laser Power: | 60W/80W/100W/130W/150W/180W |
| Working Area: | 600*900mm/1300*900mm/1600*1000mm |
| Engraving Speed: | 0-30000mm/min |
| Cutting Speed: | 0-3600 mm/min |
| Cutting Thickness | 0-10mm (Varies to different materials) |
| Machine Power: | 300-450W |
| Location Type: | Red Pointer positioning |
| Location Accuracy | ±0.1mm |
| Resolution: | 1000dpi |
| Port: | USB 2.0 |
| Working Table: | Honeycomb table |
| Up-down height: | 0-300mm |
| Mini Text Height: | English Letter: 1mm Chinese:2mm |
| Support Software: | Windseal XP / CorelDraw |
| Working Voltage: | AC220V/50HZ AC110V/50HZ |
| Working Environment: | Temperature:0-45℃ Humidity:5%-95% |
| Driver Way: | Digital Subdividing Step Driver |
| Laser Device Cooling Type | Circulating Water Cooling |
| Option Item: | Motorized up-down table, Rotary Fixture Water-circulation Non-normal Protection Switch, CW-3000 Water Chiller |
| Rotary System(Optional) | φ10-150×300mm |

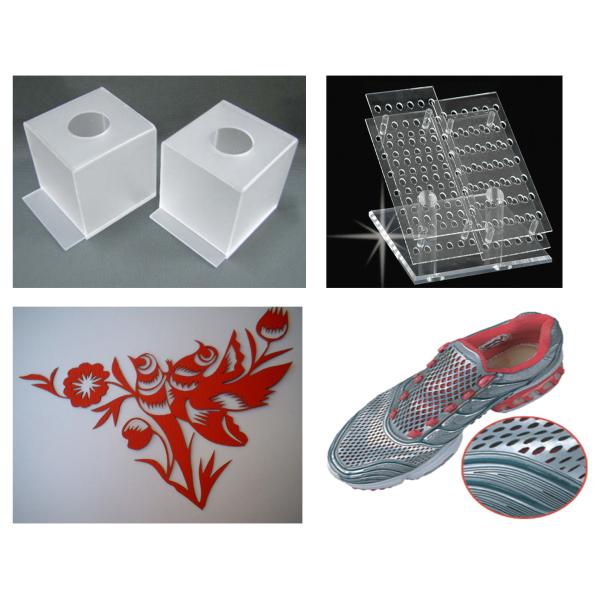

Sample show
Packaging & Delivery
1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
