Acrylic Cloth Acrylic 80W 1060 CO2 Laser Cutting Machine For Acrylic , Plastic , PVC board
Features
1. The professional manufacturers adopts square tube framework in China, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the machine from quivering resonance and distortion during long term work.
3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type.Usage age is more than 10000 hours.
4. Latest software compatible with AutoCAD,CoreDRAW and other kinds of graphics processing software
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%.
Application
Applicable Industries: Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
Applicable Materials: Acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .
.
Machine specification
| Model | LX-1060 | LX-6040 | LX-1390 | LX-1610/1612/1325 |
| Laser | CO2 glass sealed laser tube or metallic sealed laser tube |
| Laser power | 40W/60W/80W | 60W/80W/100W/120W/150W |
| Work platform size | 1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm |
| Engraving speed | ≤1000mm/s |
| Cutting speed | ≤500mm/s |
| Worktable | honey-comb or aluminum knife optional |
| Precision of positioning | ≤±0.025mm |
| Working temperature | 5-30 °C degree |
| Control System | RDCAM DSP Control system |
SoftWare
| Laser Cut software
PLT,BMP,DXF,DST,TIF format supported
CorelDraw, AutoCAD Software Compatible |
| Transmission | Belt transmission (Standard)
Or ball screw transmission optional for extra cost |
| Linear Rail | Taiwan HIWIN linear rail |
| Motor type: | Japan Stepper motor |
| DPI | 2500 |
| Recommended spare parts | Laser tube, Focal lens, Reflection Mirror |
| Power supply | 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional |
| Machine dimension (mm) | 1600*1100*1300 | 1600*800*1050 | 1950*1470*1300 | 2280*1730*1180 |
| G.W | 230KG | 260KG | 470KG | 550KGS |

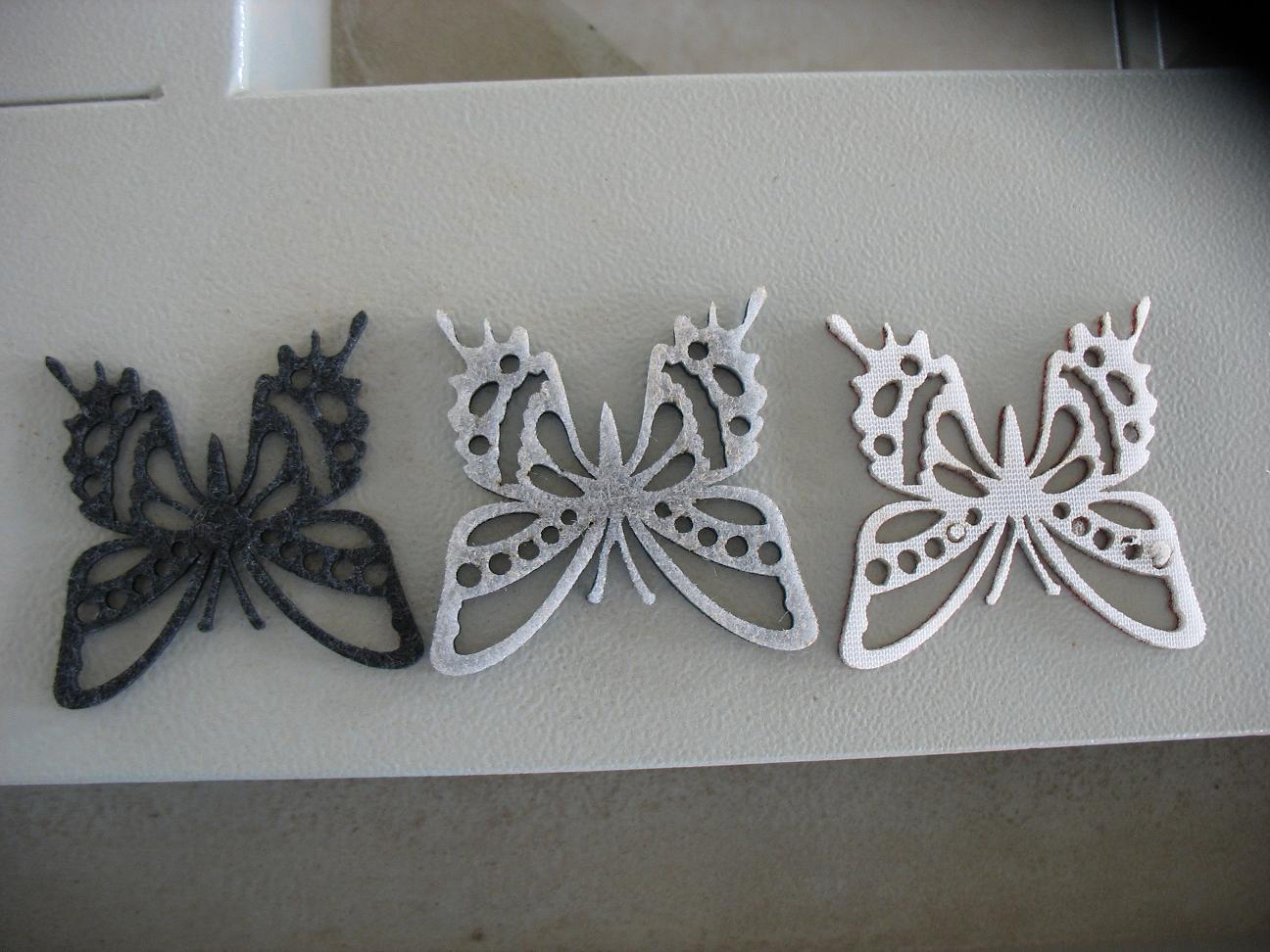

Sample show
Packaging & Delivery
1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
